Brass Compression Fittings

As a manufacturer in China, I am proud to offer my Brass Compression Fittings to merchants around the world. These high-quality fittings are designed to provide reliable and leak-free connections for a wide range of applications, from plumbing and HVAC to industrial and agricultural systems. Made from durable brass materials, our compression fittings are capable of withstanding high pressure and extreme temperatures, making them a popular choice for professionals and DIY enthusiasts alike.

One of the key benefits of our Brass Compression Fittings is their ease of installation. Unlike traditional threaded fittings that require a special tool to tighten and seal, our compression fittings simply slide onto the pipe and are tightened with a common wrench or pliers. This means that even novice users can achieve a secure and leak-free connection with minimal effort and time.

In addition, our Brass Compression Fittings are highly versatile, with the ability to connect different pipe materials, sizes, and styles. Whether you need to connect copper to PVC or join two different size pipes, our fittings offer a reliable solution that will ensure a tight seal every time. This flexibility makes our fittings ideal for a wide range of applications, from residential plumbing to commercial and industrial systems.

Another important feature of our Brass Compression Fittings is their durability and longevity. Made from high-quality materials that resist corrosion and wear, our fittings are designed to provide a long-lasting solution that requires minimal maintenance. Additionally, our fittings are engineered with precision machining and tight tolerances, ensuring a snug fit that will prevent leaks and maintain optimal performance for years to come.

Finally, we pride ourselves on our commitment to quality and customer satisfaction. Our Brass Compression Fittings are subject to rigorous testing and inspection to ensure that they meet or exceed industry standards for performance and reliability. Moreover, we offer competitive pricing and fast shipping to ensure that our customers receive the best value and service possible.

In conclusion, our Brass Compression Fittings are a high-quality and reliable option for anyone looking for a secure and leak-free connection in their plumbing, HVAC, or industrial systems. With their ease of installation, versatility, durability, and commitment to quality, these fittings are a must-have for professionals and DIY enthusiasts alike. Don't hesitate to contact us today to learn more about our products and how they can benefit your business or project.

IFAN Brass Compression Fittings

SYSTEM DESCRIPTION

The PEX compress fittings is a series of CHROME plated compression brass fittings for multilayer pipe with removable body. These types of fittings are used in various areas,but they are mainly used for the construction of drinking water distribution systems,sanitary system and heating systems.

It is produced in accordance with regulations of the D. M.n°174 of the 6 April 2004 on materials and objects that can be used in installations for distribution of water intended for human consumption and respect all the following legislation for ensure a quality and reliability product.

THIS LINE IS PRODUCED ACCORDING TOTHE REGULATIONS:

＞EN681-1

＞UNI EN 1254-3

＞EN 10954-2

MATERIAL

＞All the forged brass fittings are produced in accordance with the regulations of the legislation UNI EN 12165 with brassCW617N-CuZn40Pb2

＞All the bar brass fittings are produced in accordance with regulations of the legislation UNI EN 12164 with brassCW617N-CuZn40Pb2

THREADING

＞The IFAN BRASS threaded fittings are produced in accordance with the regulations ISO 228 cylindrical gas threading

GALVANIC TRATMENTS

To satisfy the regulations of the D.M.n°174of the 6 April 2004 and allow the use of fittings in installation for water distribution for human consumption,all the nickel plated and chrome plated articles satisfy the requirements of the legislation UNI ISO 92 27 for the corrosion and the legislationUNI ISO 28 19 for the adherence.

SYSTEM INFORMATION

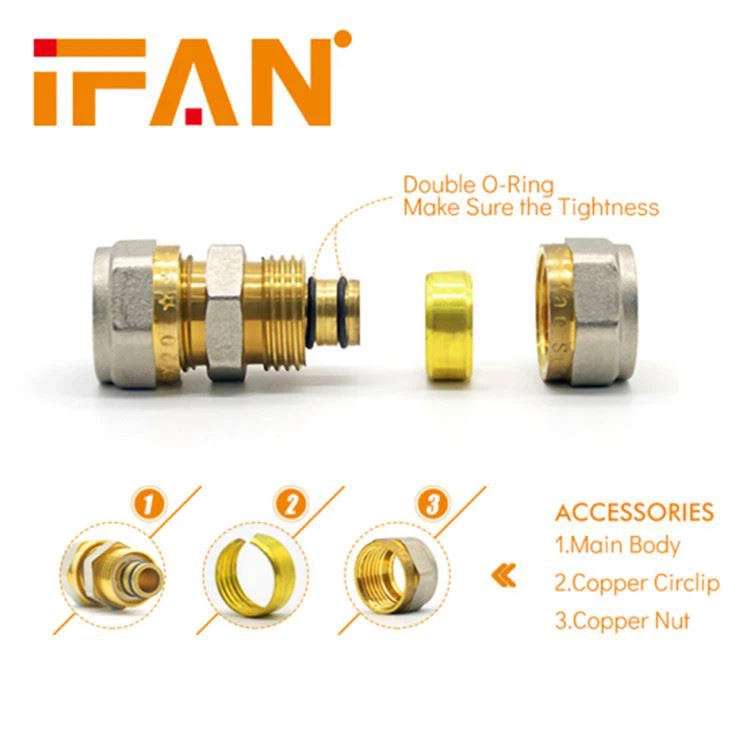

The seal between the multilayer pipe and the fitting is guaranteed by the presence of a double O-ring EPDM PEROX (accordance to UNI EN 681-1:2006)housed on the adapter body.

The joining of the occurs by radial compression provided by the engagement of the nut that results in the compression of the split around the pipe and the other axial compression on the O-Ring of the insert. Finally,the fitting is also equipped with Teflon ring that guarantees the isolation between the aluminium of the pipe and the brass of the insert preventing stress-corrosion that could damage the system (tube and fitting) . The interchangeability of the system is guarantee by the insert mobile,which allows you to use the same connection with different sizes of pipe.

MAX WORKING PRESSURE: 10 BAR

MAX WORKING TEMPTURE: -20C-+110℃

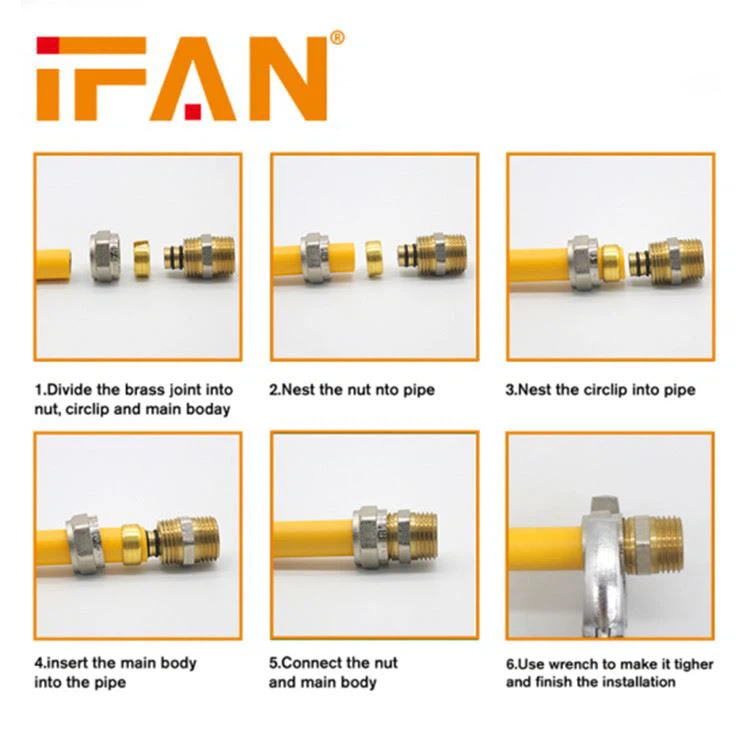

ASSEMBLING INSTRUCTIONS

In order to achieve a perfect connection and according to the kind of pipe fitting which will be used, it is necessary to follow the simple and basic procedures indicated below:

1. First, cut the tube at the desired length by using a pipe-cutter or the special shears,making sure that the cut is perpendicular to the pipe axis.

2. Then, trim and calibrate the tube by using the tool. Insert the gauge into the pipe,then ultimately tum it in a clockwise and in a counter-clockwise direction;

3. In case of compression mechanical pipe fittings,above all in case of adapters insert the following pipe fitting component into the tube:pipe-tightening nut-ring;

4. Fitting of pipe into the fitting until it totally beats against a insulating ring;

5. Tighten the nut on the body as much as possible by hand then using a wrench screw the nut,according to the number of tums mentioned in the table.

If you have any questions, please feel free to contact us.
