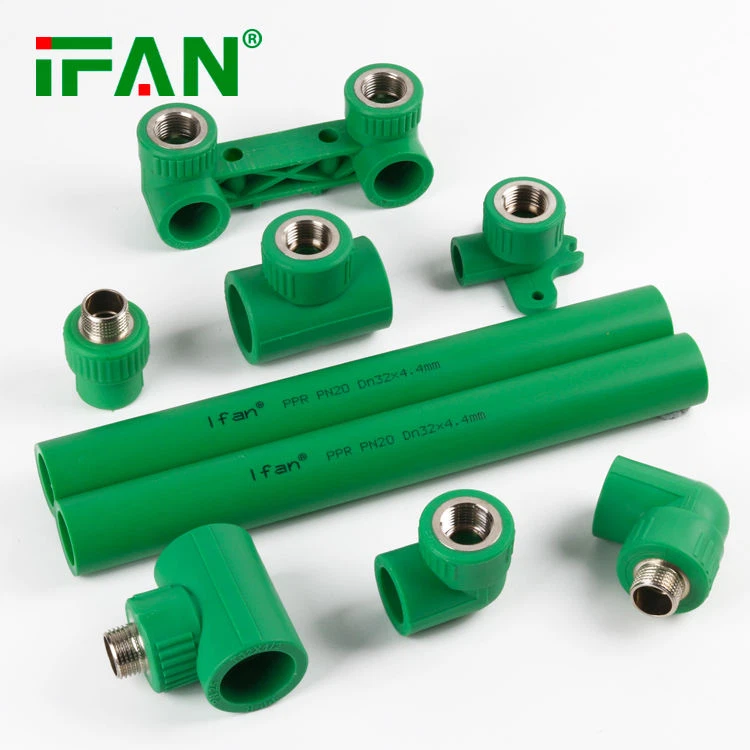

PPR Fitting Elbow

Product Name Elbow PPR Fittings
Material Korea Hyosung Raw Material
Working Pressure Pipe 12.5bar – 25 bar, fittings 25 bar
Working Temperature -35℃ -110℃
Customized Support OEM, ODM
Brand Name IFAN
Color Green, White, Customized
Use Water Supply, Water Drainage
Size 16-160mm
Packing Standard export package or Customized

Material Properties
Density, flexural strength, impact toughness, compressive strength, elastic modulus, tensile strength, temperature resistance, and color.

Scope of application
The light series pipe clamps are used for ordinary mechanical pressure pipes in 6 sizes series, the pipe outer diameter is 6-57mm.
Duplex series pipe clamps are used for mechanical pressure pipes of 5 size series, the outer diameter of the pipe is 6-42mm.
Heavy-duty series pipe clamps are used for high mechanical pressure pipes in 8-size series, the pipe outer diameter is 8-273mm.

Installer
Assembled on the welding plate Before assembly, in order to better determine the direction of the clamp, it is recommended to mark the fixed place first, then weld it, insert the lower half of the pipe clamp body, and put the pipe to be fixed. Then put the other half of the pipe clip body and cover plate, and tighten with screws. Do not directly weld the bottom plate with the pipe clamp installed.
On the ground rail, the rail can be welded on the foundation or fixed with screws, then push the rail nut into the rail, turn it 90 degrees, insert the lower half of the pipe clamp into the nut, put the pipe to fix, and then put The upper and upper half of the pipe clamp body and cover plate are fixed with screws.

IFAN also has Kangyu products, lower prices, better quality.
In stacked assembly, the guide rail can be welded on the foundation, or fixed with screws, first install the upper and lower half of the pipe clamp body, put the pipe to be fixed, then put the upper half of the pipe clamp body, fix it with screws, and pass the anti-loosening cover plate prevent it from turning. Then install the second pipe clamp in the same way as above.
The assembly of the elbow, when assembling the elbow, should be directly fixed with Caster pipe clamps at the front and rear of the elbow. It is recommended that such support points should be fixed positions.
Therefore, there is no difference between the pipe clamp and the pipe clamp. Their uses are the same, but the name of the product is different. Some people call him a pipe clamp, and some people call him a pipe clamp.
