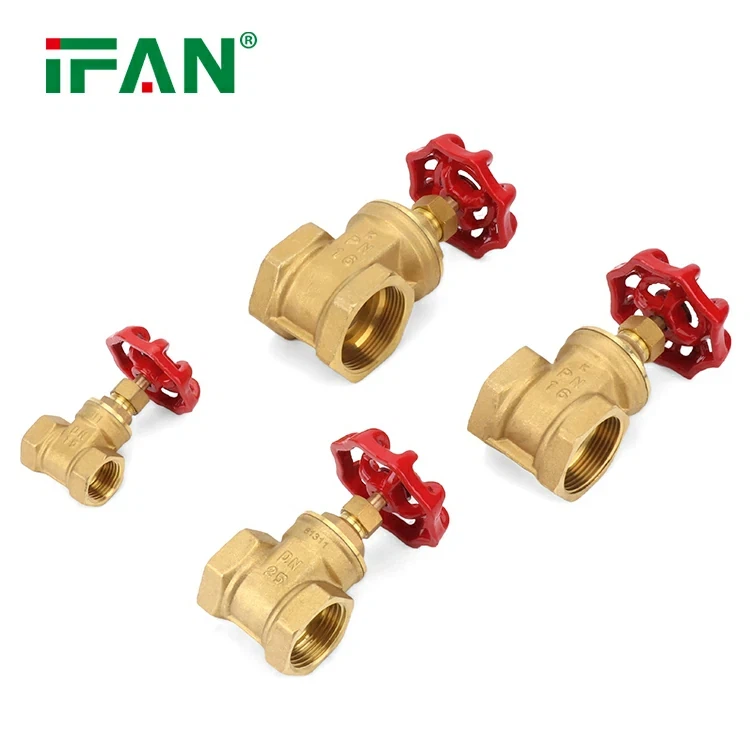

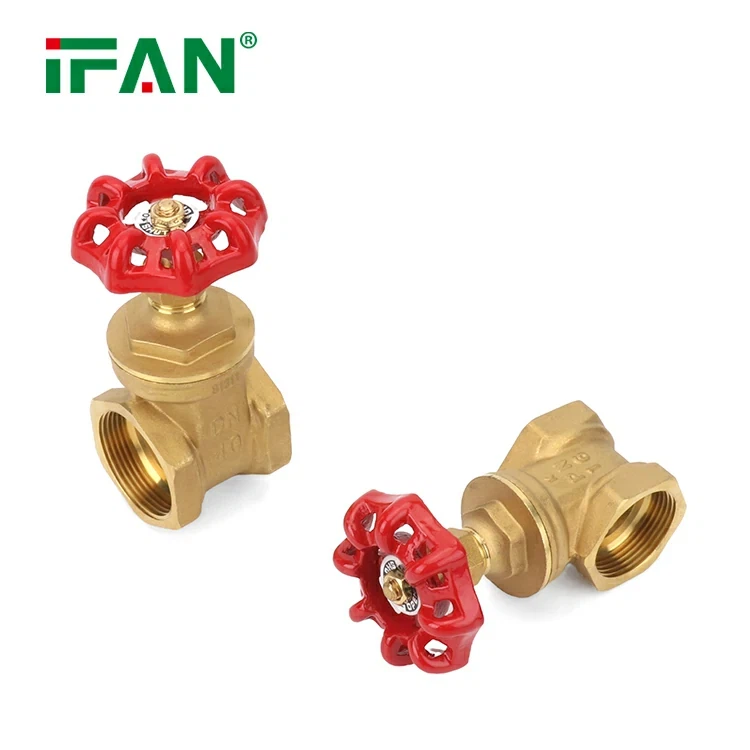

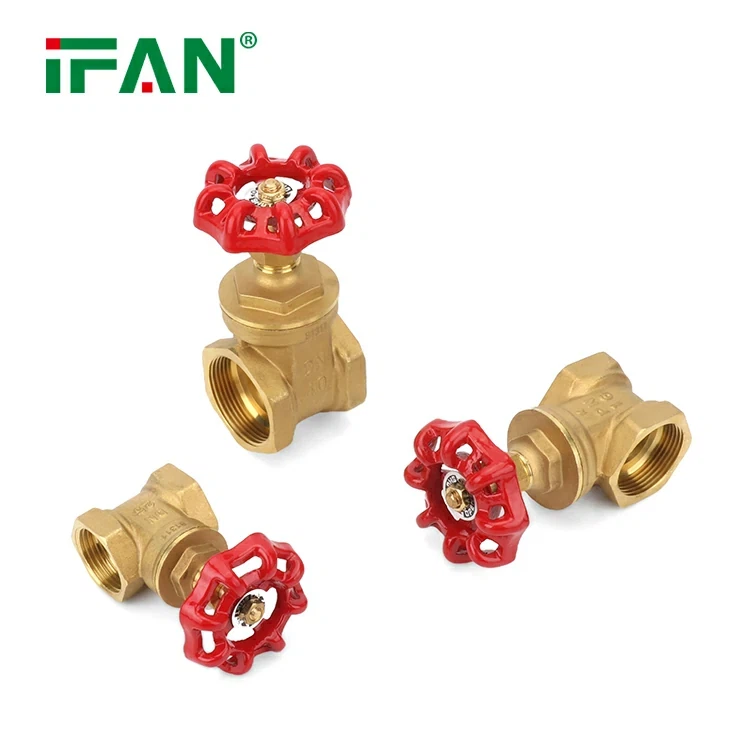

IFAN 81313 Brass Gate Valve

Modular Design of Brass Gate Valves: An In-Depth Exploration

Introduction to Modular Design in Brass Gate Valves

Brass gate valves are essential components in fluid control systems, widely used in industries such as plumbing, oil and gas, and water treatment. Their durability, corrosion resistance, and reliability make them a preferred choice for many applications. However, traditional valve designs often face challenges related to customization, maintenance, and scalability. Modular design offers a promising solution to these issues by breaking down the valve into interchangeable and standardized components. This approach not only enhances flexibility but also simplifies manufacturing, assembly, and repair processes. This article delves into the concept of modular design for brass gate valves, exploring its benefits, implementation strategies, and potential challenges.

Benefits of Modular Design in Brass Gate Valves

The modular design of brass gate valves brings several advantages to both manufacturers and end-users. Firstly, it allows for greater customization, as users can select and combine modules to meet specific application requirements. This flexibility is particularly valuable in industries with diverse operational needs. Secondly, modular design simplifies maintenance and repair. Instead of replacing an entire valve, only the faulty module needs to be replaced, reducing downtime and costs. Thirdly, standardization of components streamlines manufacturing processes, leading to cost savings and improved quality control. Finally, modular valves are easier to upgrade, enabling users to adapt to changing technological or operational demands without significant investment.

Key Components and Modularization Strategies

A modular brass gate valve typically consists of several key components, including the body, gate, stem, bonnet, and sealing elements. Each of these components can be designed as a separate module, allowing for independent optimization and replacement. For instance, the gate module can be tailored to handle different flow rates or pressures, while the sealing module can be customized for specific fluid types or temperatures. To achieve effective modularization, manufacturers must focus on standardization, ensuring that modules are compatible across different valve models and sizes. Additionally, robust interfaces between modules, such as threaded or flanged connections, are critical to maintaining leak-proof performance and structural integrity.

Implementation Challenges and Solutions

While modular design offers numerous benefits, its implementation in brass gate valves is not without challenges. One major concern is ensuring the reliability and durability of modular connections, as improper sealing or alignment can lead to leaks or mechanical failure. To address this, manufacturers must employ precision engineering techniques and high-quality materials for module interfaces. Another challenge is the potential increase in initial design and tooling costs, as modular systems require extensive planning and testing. However, these costs can be offset by long-term savings in production, maintenance, and inventory management. Additionally, educating end-users about the advantages and proper use of modular valves is essential to drive adoption and ensure optimal performance.

Future Trends and Innovations in Modular Brass Gate Valves

The future of modular brass gate valves is shaped by advancements in materials, manufacturing technologies, and digitalization. For example, the use of advanced alloys and composite materials can enhance the performance and lifespan of modular components. Additive manufacturing, or 3D printing, offers new possibilities for producing complex module geometries with reduced waste and lead times. Furthermore, the integration of smart technologies, such as sensors and IoT-enabled monitoring systems, can transform modular valves into intelligent components capable of real-time performance tracking and predictive maintenance. As industries increasingly prioritize sustainability, modular design also aligns with circular economy principles by promoting reuse, repair, and recycling of valve components. IFAN factory 30+ years manufacture experience support color /size customization support free sample.Welcome to consult for catalog and free samples.This is our Facebook Website:www.facebook.com,Click to watch IFAN's product video.Our IFAN products from quality to price are your best choice, welcome to buy!

Conclusion

The modular design of brass gate valves represents a significant evolution in fluid control technology, offering unparalleled flexibility, efficiency, and cost-effectiveness. By breaking down valves into standardized and interchangeable modules, manufacturers can meet diverse application needs while simplifying production and maintenance processes. Despite implementation challenges, ongoing advancements in materials, manufacturing, and digital technologies are paving the way for innovative and sustainable modular valve solutions. As industries continue to evolve, the adoption of modular brass gate valves is poised to play a pivotal role in enhancing system performance and operational resilience.
