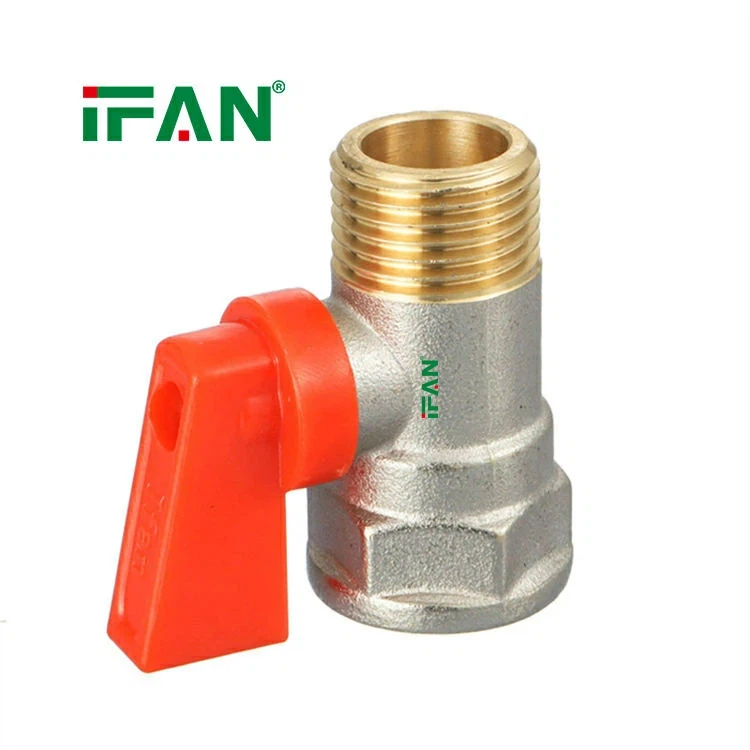

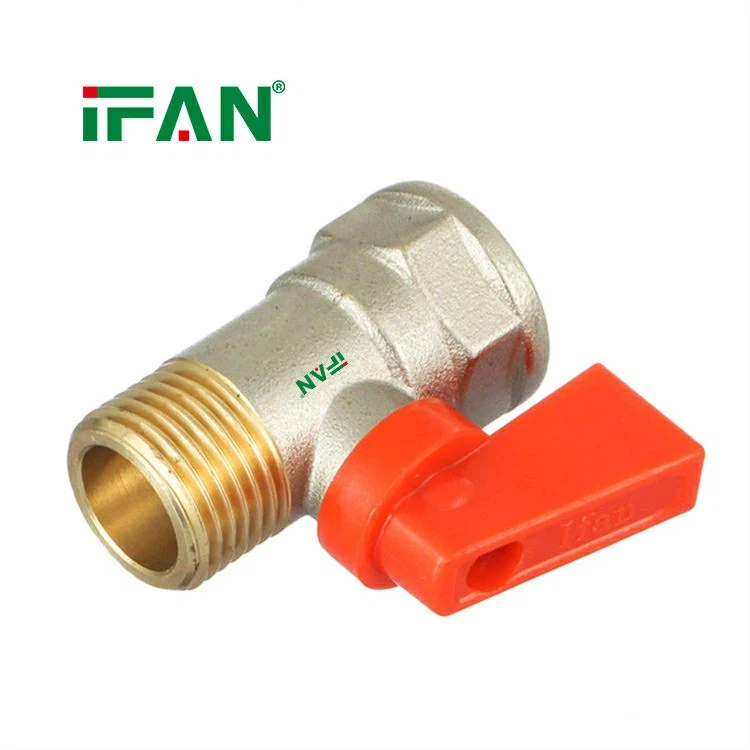

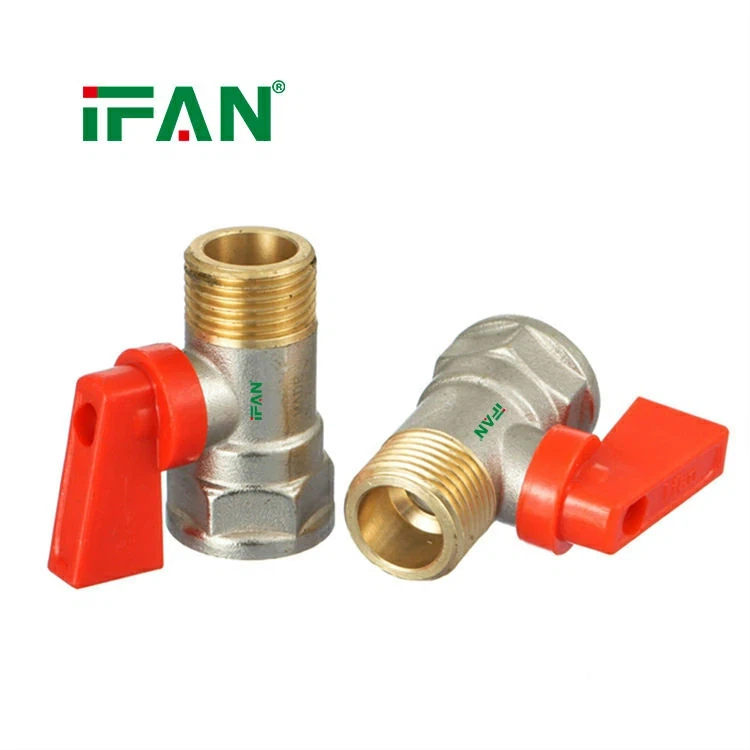

Durable Mini Ball Valve Connector

Introduction

Durable Mini Ball Valve Connector is a compact flow control component designed for small-scale piping systems where precise shut-off, stable connection, and long-term operational reliability are required. It is commonly used in residential plumbing setups, appliance water lines, laboratory fluid systems, and compact industrial equipment. Despite its small size, the connector integrates both connection and flow control functions into a single unit, improving system efficiency and reducing the need for multiple fittings. The design focuses on structural strength, smooth operation, and dependable sealing performance under repeated use. Its compact geometry makes it suitable for installations with limited space while maintaining consistent functional stability.

Welcome to contact IFAN, we are online 24 hours a day to answer your questions!

Compact Structural Design and Engineering Concept

The design of the Durable Mini Ball Valve Connector is centered on compact engineering, where every internal and external component is optimized for space efficiency without sacrificing performance. The internal ball mechanism is precisely positioned within a reduced-size valve body, allowing controlled rotation and accurate flow regulation. The connector structure integrates inlet and outlet interfaces directly into the valve housing, minimizing additional joints. This compact integration reduces potential weak points in the system and ensures that the connector remains mechanically stable even in confined installation environments.

Ball Mechanism and Flow Control Precision

At the core of the connector is the ball valve mechanism, which controls fluid flow through rotational movement. When the handle is turned, the internal ball rotates to align or block the flow channel. This simple yet effective mechanism allows fast and precise shut-off or opening of fluid pathways. In the mini connector design, the ball is engineered with high precision to ensure smooth rotation and accurate positioning. This allows users to control flow with minimal effort while maintaining reliable sealing performance when the valve is closed.

Material Strength and Structural Stability

Durability in the Mini Ball Valve Connector is supported by carefully selected materials that provide both mechanical strength and long-term stability. The valve body and internal components are designed to withstand repeated operation cycles without deformation. This ensures that the connector maintains alignment between the ball and sealing seats over time. Structural stability is essential in preventing internal wear or misalignment that could affect flow control accuracy. The robust material composition allows the connector to perform consistently in both low and moderate pressure systems.

Sealing Performance and Leak Control

A critical function of the mini ball valve connector is reliable sealing during shut-off. The ball is engineered to form a tight seal against internal seats when rotated to the closed position. This sealing contact is designed to minimize gaps and prevent fluid leakage. The sealing surfaces are shaped to distribute contact pressure evenly, ensuring consistent closure performance. Even after repeated use, the connector maintains its ability to form a secure seal, reducing the risk of gradual leakage in small-scale fluid systems.

Smooth Operation and User Control

Ease of operation is an important aspect of the connector's design. The rotational movement of the handle is engineered to be smooth and responsive, allowing users to control flow with minimal resistance. This smooth operation is achieved through precise internal alignment and reduced friction between moving components. The compact structure ensures that even in tight installation spaces, the valve can be operated easily without requiring excessive force. This improves usability in applications where frequent adjustments are needed.

Connection Stability and Installation Efficiency

The Durable Mini Ball Valve Connector is designed for quick and stable installation. Its integrated connector ends allow it to be easily attached to compatible piping systems without complex assembly steps. The compact structure reduces the number of additional fittings required, simplifying system layout. Once installed, the connector maintains a stable position within the pipeline, ensuring consistent performance during operation. This installation efficiency is particularly valuable in compact systems where space and accessibility are limited.

Application Flexibility and System Compatibility

This type of connector is widely used across different small-scale fluid systems due to its adaptable design. It can be integrated into household water lines, small machinery cooling systems, and laboratory fluid control setups. Its standardized connection interfaces allow compatibility with various piping materials, making it suitable for both new installations and system modifications. This flexibility enables it to serve as a universal solution for compact flow control applications.
