PPR Pipe Fusion Welding Technology: Critical Technical Analysis
Apr 15, 2025
Fundamentals of PPR Thermal Fusion Principles

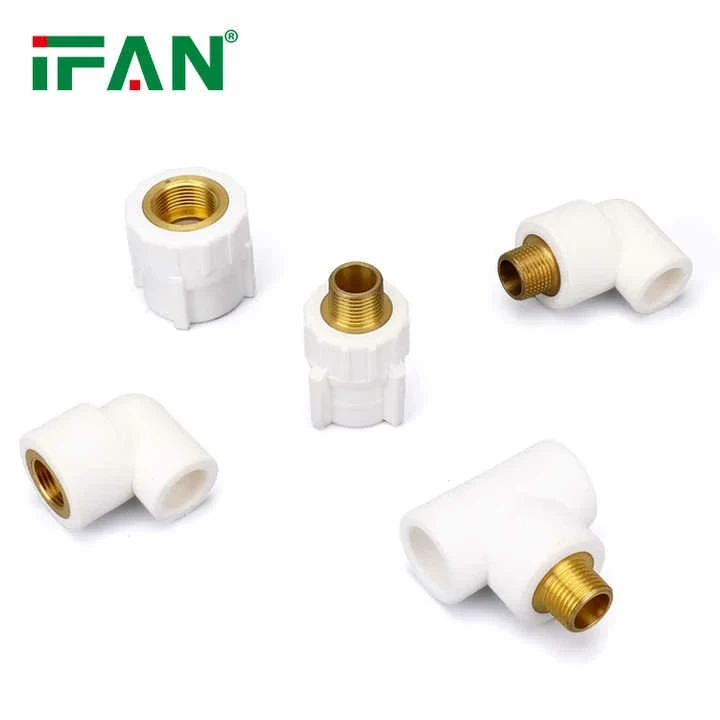

PPR (Polypropylene Random Copolymer) pipe systems rely on heat fusion welding to create permanent, leak-proof joints. This process involves heating pipe ends and fittings simultaneously to 260±5°C, allowing polymer chains to interdiffuse under controlled pressure. The scientific basis stems from PPR's semi-crystalline structure, which undergoes thermal transition at 140-170°C, enabling molecular entanglement without chemical adhesives.
Key parameters governing successful fusion:
Melt temperature: 260°C optimal for complete polymer chain mobility
Heating time: Varies by pipe diameter (e.g., 20mm=5sec; 63mm=24sec)
Fusion pressure: 0.15-0.3MPa (mechanical vs. hydraulic welders)
Cooling duration: Minimum 2 minutes for DN20 pipes; doubles per size increase
Industry standards (ISO 15874, DIN 16962) mandate these thermal profiles to achieve joints with >90% of base material strength. Improper heating causes cold welds (weak joints) or carbonization (overheated material degradation).
Equipment Selection and Calibration Protocols
Precision welding requires specialized tools with strict maintenance schedules:
Essential Fusion Equipment
| Tool Type | Function | Accuracy Requirement |
|---|---|---|
| Dual-plate welder | Simultaneously heats pipe/fitting | ±2°C temperature control |
| Pipe cutter | Ensures square ends (≤1° bevel tolerance) | 0.1mm cutting precision |
| Depth gauge | Verifies insertion marks | 0.5mm measurement resolution |
| Pressure regulator | Maintains consistent fusion force | ±0.02MPa variance |
Calibration Procedures
Daily: Verify welder plate temperature with infrared thermometer
Weekly: Check pressure gauge accuracy against master gauge
Monthly: Inspect heating plate Teflon coating for wear (>0.3mm wear = replacement)
Field studies show 68% of joint failures originate from uncalibrated equipment, emphasizing the need for rigorous tool maintenance.
Step-by-Step Fusion Welding Procedure
Phase 1: Preparation (Critical for Joint Integrity)
Cutting: Use rotary cutter for burr-free ends (deburring increases ovality risk)
Cleaning: Wipe with isopropyl alcohol to remove grease/oxidation layers
Marking: Apply depth lines at 1.1× fitting socket depth (prevents over-insertion)
Phase 2: Heating Process
Contact pressure: 0.02MPa initial contact ensures full plate engagement
Bead formation: Wait for uniform 1mm melt bead around pipe circumference
No-rotation rule: Avoid twisting pipes during heating to prevent stress concentrations
Phase 3: Joining & Cooling
Rapid connection: ≤3sec transfer time from plates to joint alignment
Alignment tolerance: ≤2° angular deviation permitted
Pressure maintenance: Hold 0.15MPa until visible solidification (typically 30sec)
Note: Ambient temperatures <5°C require 25% longer cooling times.
Common Defects and Quality Control Measures
Fusion Welding Defects & Solutions
| Defect Type | Causes | Prevention Method |
|---|---|---|
| Cold weld | Insufficient heating time | Use timer with audible alerts |
| Over-penetration | Excessive pressure/heat | Follow diameter-specific parameters |
| Ovality distortion | Non-square cutting | Laser-guided cutting systems |
| Carbonized deposits | Dirty heating plates | Daily Teflon coating inspection |
Non-Destructive Testing Methods
Ultrasonic testing: Detects voids >0.5mm in joint cross-sections
Macroscopic examination: Section samples show complete polymer fusion
Pressure testing: 1.5× working pressure for 1 hour (ISO 3453 standard)
Industry data indicates proper QC reduces failure rates from 8% to 0.3% in pressurized systems.
Advanced Techniques for Special Applications
Large-Diameter Pipes (DN≥110mm)
Preheating: 80°C for 30min prevents thermal shock in thick walls
Staggered welding: Rotate pipe 120° between heating phases to ensure even melt
Hydraulic alignment: Computer-controlled jigs maintain <0.5mm concentricity
High-Purity Systems (Pharmaceutical/Chemical)
Cleanroom welding: ISO Class 8 environment prevents particulate contamination
Electropolished fittings: ≤0.3µm surface roughness for biofilm resistance
Steam sterilization validation: 121°C/30min cycles verify joint durability
Automated Fusion Systems
Robotic welders now achieve:
0.01mm repeatability in joint positioning
AI-powered parameter adjustment for material batch variations
Real-time thermal imaging to monitor melt pool uniformity
Conclusion: Mastering PPR Fusion for Reliable Systems
Proper thermal fusion of PPR pipes demands scientific precision rather than empirical practice. By adhering to the temperature-pressure-time trifecta and implementing rigorous quality controls, installers can achieve joints that outperform the pipe body itself in pressure tests. Emerging technologies like laser-assisted fusion and smart welding systems are pushing the boundaries of reliability, particularly in critical applications like nuclear power plants and semiconductor facilities.
For optimal results, professionals should:
✅ Invest in calibrated, high-precision equipment
✅ Follow diameter-specific fusion parameters religiously
✅ Implement multi-stage quality verification
✅ Stay updated on ISO/DIN standard revisions
