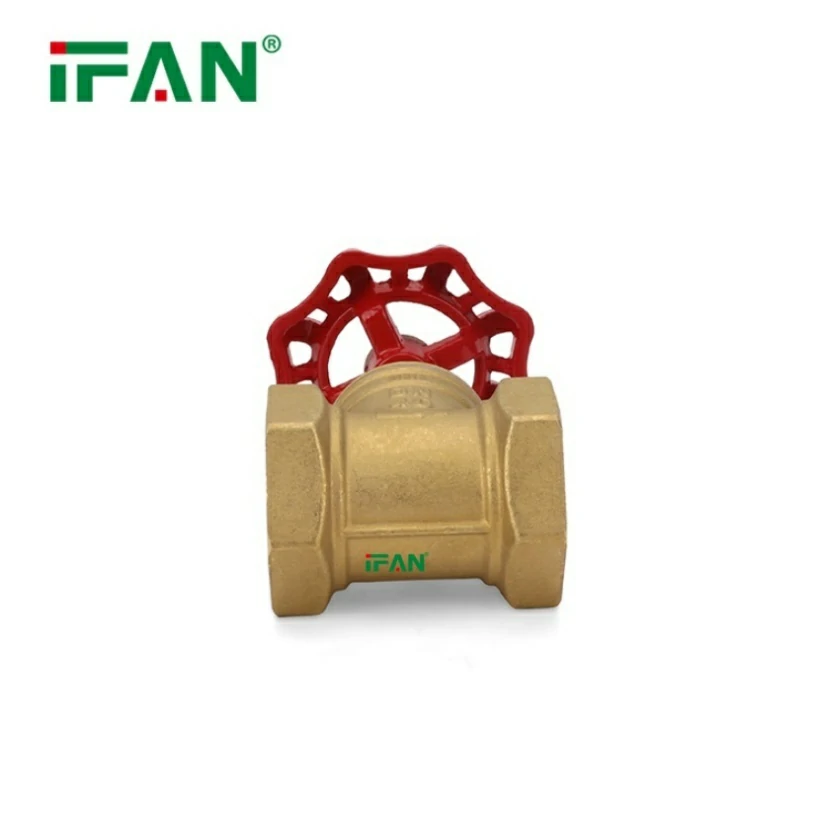

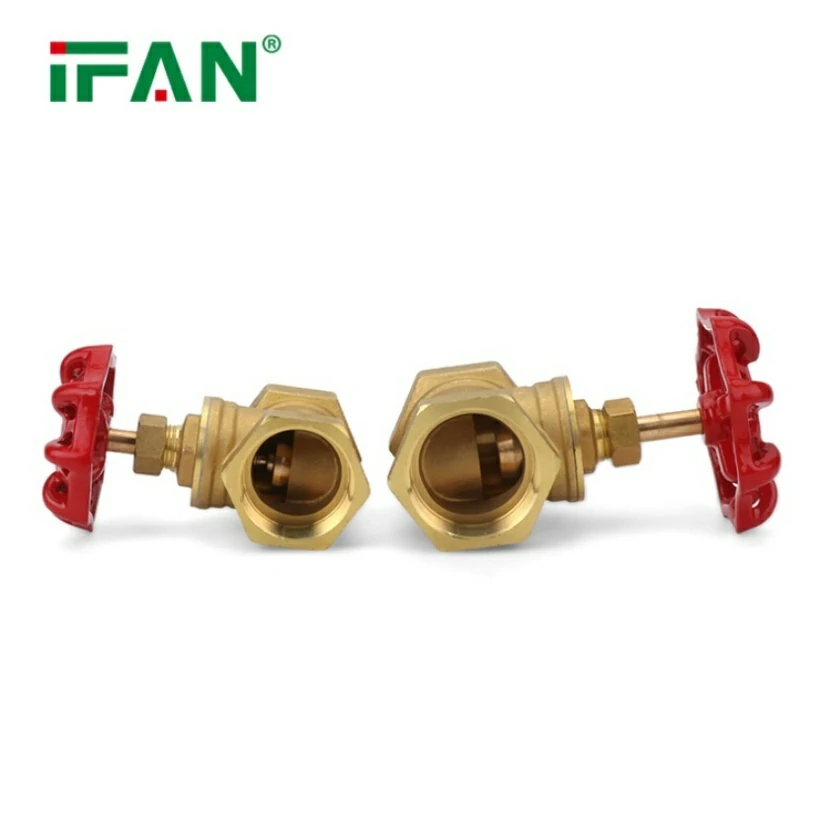

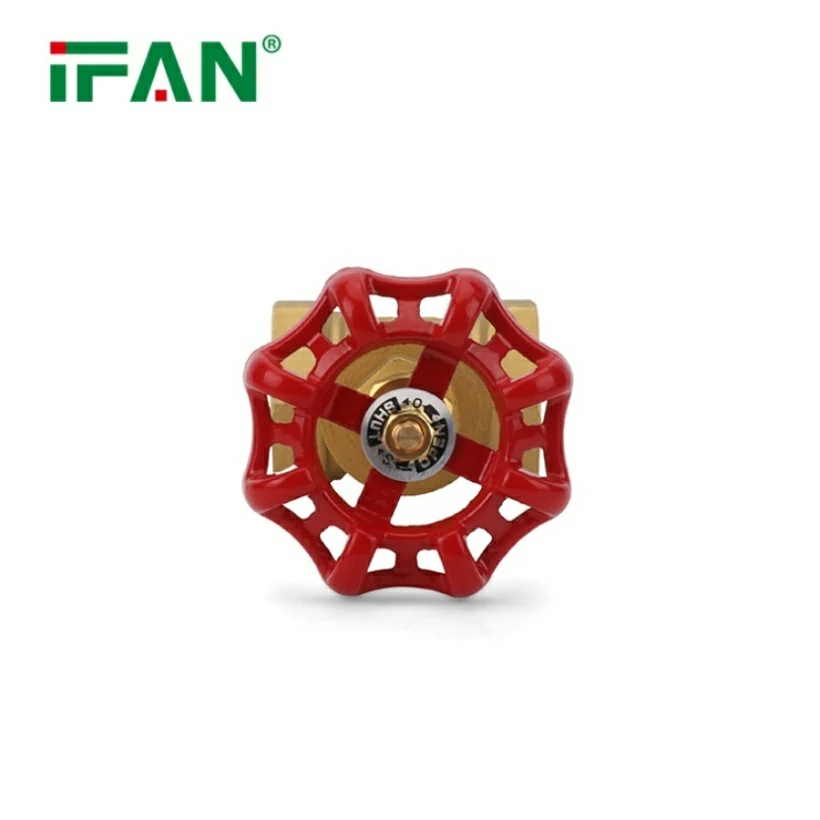

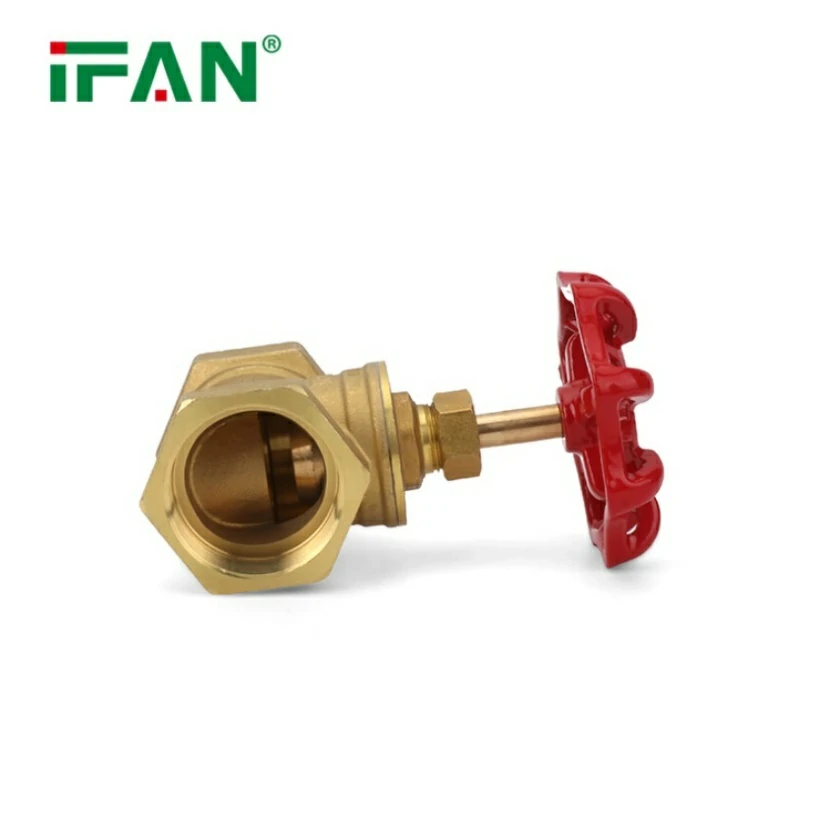

Brass Gate Valve Provides Tight Sealing



Product Name	Brass Gate Valve
Color	Brass Color
Size	1/2''-1''
Brand	IFAN or Customized
OEM	Support
Sample	Free
Experience	30+Years
Contact Us	Click HERE to contact us now!

Welcome to contact IFAN, we are online 24 hours a day to answer your questions!

Introduction

In piping systems, sealing is not simply about stopping flow but about creating a controlled separation between two sections of a pipeline. When a valve is closed, the internal structure must form a clear boundary that prevents any internal communication between upstream and downstream sides. A brass gate valve is designed with a specific internal geometry that focuses on this separation function. Its sealing behavior is determined by how internal components meet, align, and interact under mechanical control. Instead of relying on complex flow regulation, the valve achieves sealing through direct contact between defined internal surfaces.

Gate Positioning and Defined Closure Path

The sealing process begins with the movement of the gate along a guided internal path. The stem mechanism directs this movement vertically, ensuring that the gate travels in a straight and controlled line toward the seat. This guided motion is essential because it determines how accurately the sealing surfaces will meet.

As the gate moves downward, it follows the same trajectory each time the valve is operated. This repeatable path ensures that the final position of the gate is consistent. When the gate reaches the lower position, it aligns directly with the seat, forming the basic structure required for sealing contact.

Seat Contact Geometry and Surface Matching

The seat inside the valve body provides a fixed contact surface for the gate. Its geometry is designed to correspond with the shape of the gate so that both components meet along a defined interface. This matching structure allows the sealing surfaces to align in a controlled manner during closure.

When the gate reaches the seat, the contact occurs across a specific area rather than at a single point. This distributed contact helps form a continuous interface between the two components. The precision of this geometric relationship is central to how the valve establishes a closed condition within the pipeline.

Stem-Controlled Downward Compression

The sealing action is influenced by the stem mechanism, which converts rotational movement into downward force on the gate. As the handle is turned, the stem gradually lowers the gate into the sealing position. This movement is not abrupt but progresses in a controlled sequence.

As the gate approaches the seat, the stem continues to apply force, guiding the gate into full contact with the sealing surface. This controlled compression ensures that the gate settles into the same position each time the valve is closed. The mechanical control provided by the stem is essential for achieving consistent sealing alignment.

Wedge and Flat Gate Interaction with Seat Surface

Depending on the valve design, the gate may be shaped as a wedge or as a flat plate. In both cases, the gate is designed to align with the seat surface in a way that supports complete contact during closure. The shape of the gate determines how force is distributed across the sealing interface.

In a wedge-type configuration, the angled surfaces guide the gate into tighter contact as it descends. In a flat configuration, the gate meets the seat along a more uniform plane. Both structures are designed to ensure that the sealing surfaces align fully when the valve reaches the closed position.

Fixed Seat Position and Reference Alignment

The seat remains fixed within the valve body and serves as a constant reference point for sealing alignment. Because it does not move during operation, all sealing action is defined relative to this stationary surface.

Each time the valve closes, the gate is guided toward the same location on the seat. This fixed relationship ensures that the sealing interface is formed consistently during repeated operation. The stability of the seat position is essential for maintaining a predictable sealing pattern within the valve structure.

Complete Flow Path Separation at Closure

When the gate reaches its final position against the seat, the internal flow path is fully divided into two sections. The sealing interface prevents direct passage through the valve body, creating a distinct separation between upstream and downstream flow regions.

This separation is achieved through full surface contact between the gate and seat. The internal passage is no longer continuous, as the sealing interface interrupts the flow channel at a defined point. The structural closure of the valve is based entirely on this internal alignment and contact mechanism.

Repetition of Sealing Cycle Behavior

In normal operation, the valve is opened and closed multiple times during system use. Each cycle follows the same sequence of movement, where the gate is raised to allow flow and lowered to restore closure.

The repetition of this cycle ensures that the sealing surfaces meet under consistent conditions each time. The gate returns to the same position against the seat with every closure. This repeated mechanical behavior maintains a stable sealing pattern throughout the operational use of the valve.

Internal Alignment During Sealing Engagement

Proper sealing depends on the alignment of internal components during closure. The stem, gate, and seat must all align along a common internal axis to ensure that contact occurs correctly.

The internal structure of the valve guides these components into alignment during operation. As the gate descends, it is positioned so that its surfaces meet the seat evenly. This alignment ensures that the sealing interface is formed without deviation from the intended contact path.
