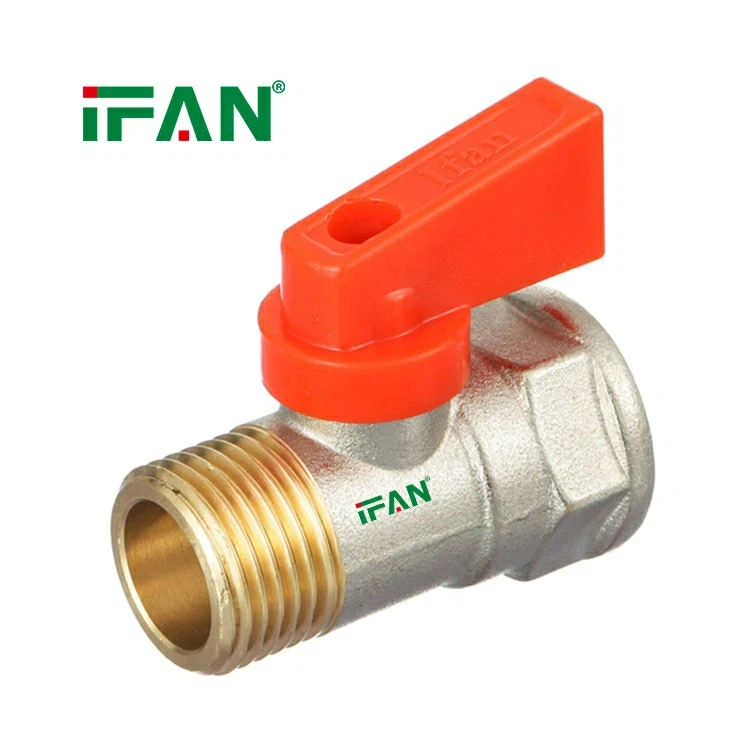

Compact Mini Ball Valve Design

Introduction

Compact Mini Ball Valve Design is a space-optimized fluid control solution created for small-scale piping systems that require precise flow regulation within extremely limited installation areas. It is commonly applied in residential plumbing, appliance connections, laboratory setups, and compact mechanical assemblies where every millimeter of space matters. The design integrates a full ball valve function into a minimized structural form, allowing efficient shut-off and flow control without requiring large housing or extended fittings. The main focus of this design is spatial efficiency, structural integration, and functional completeness within a reduced footprint.

Welcome to contact IFAN, we are online 24 hours a day to answer your questions!

Space-Optimized Structural Layout

The defining characteristic of Compact Mini Ball Valve Design is its reduced spatial footprint. Every structural element is arranged to minimize external volume while preserving internal flow functionality. The valve body is shortened and streamlined, eliminating unnecessary extensions that are typically found in standard valve configurations. The inlet and outlet paths are positioned closer together to reduce overall length. This compact layout allows the valve to be installed in narrow or crowded piping environments where conventional valves cannot be accommodated. The design prioritizes efficient use of installation space without compromising operational capability.

Integrated Flow Path Configuration

In a compact design, internal flow pathways must be carefully organized to maintain performance within a smaller structure. The Mini Ball Valve integrates a direct and simplified flow channel that passes through the central ball mechanism. This reduces internal complexity and shortens the distance that fluid must travel inside the valve body. The streamlined flow path not only contributes to space reduction but also improves flow efficiency by minimizing internal resistance. The integration of components within a single compact housing ensures that the valve performs multiple functions within a reduced structural volume.

Miniaturized Ball Mechanism Arrangement

The ball mechanism in Compact Mini Ball Valve Design is engineered to fit within a reduced internal cavity while maintaining full rotational functionality. The ball is scaled down proportionally and positioned precisely within the valve body to ensure smooth operation. Despite the smaller size, the rotational axis and alignment structure are maintained with accuracy to support consistent movement. The compact arrangement allows the ball to rotate freely within limited space, enabling reliable switching between open and closed states. This miniaturization is essential for achieving full valve functionality in constrained environments.

Reduced-Volume Handle and Control Interface

The control interface of the valve is also adapted for compact design requirements. The handle structure is minimized in size while still providing sufficient leverage for rotation. It is positioned close to the valve body to reduce protrusion and avoid interference with surrounding components. This reduced-volume design ensures that the valve can be operated even in tightly packed installations where external clearance is limited. The simplified handle geometry contributes to overall space efficiency while maintaining clear and intuitive operation.

Compact Sealing Structure Integration

Sealing components in the compact design are integrated directly into the reduced housing structure. Instead of using extended or separate sealing assemblies, the sealing interface is embedded within the internal valve geometry. This integration shortens the overall structure and reduces the number of external connection points. The sealing zones are positioned closely around the ball mechanism, ensuring that flow control and sealing functions are concentrated within a minimal space. This compact sealing integration supports efficient shut-off performance without increasing valve size.

Shortened Connection Interface Design

Another key feature of Compact Mini Ball Valve Design is the reduction of connection length. The inlet and outlet interfaces are designed to connect directly to piping systems with minimal extension. This shortened interface design reduces the overall footprint of the valve when installed in a pipeline. It also allows the valve to be placed closer to other system components, improving layout flexibility. The compact connection structure is especially useful in systems where multiple valves or fittings must be arranged in a limited area.

High-Density Functional Integration

The compact design achieves high-density functional integration, where multiple operational elements are combined into a single reduced-volume structure. Flow control, shut-off capability, and connection functionality are all incorporated within one compact unit. This integration eliminates the need for additional fittings or extended assemblies, simplifying system architecture. By concentrating multiple functions into a single body, the design reduces system complexity and improves installation efficiency in space-restricted environments.
