Bronze Threaded Fittings Offer Strong Connections

Product Name	IFAN Bronze Threaded Fittings
Size	1/2"-1" Or Customized
Color	Yellow Or Customized
Package	IFAN standard packaging
Features	Durable
Sample	Sample Free
Contact	Click HERE to contact us now!

Welcome to contact IFAN, we are online 24 hours a day to answer your questions!

The Structure of a Strong Threaded Joint

Bronze threaded fittings are designed to create firm mechanical connections between sections of a plumbing system. Unlike a loose push-fit arrangement, a threaded joint relies on accurately formed male and female threads that engage along a defined contact area.

When the threads are correctly matched, the fitting can be screwed into the corresponding component until the connection reaches the required position. The engaged threads help hold the components together while the sealing method controls the passage of fluid through the threaded interface.

The strength of the completed connection depends on several factors rather than the bronze material alone. Thread dimensions, fitting geometry, wall thickness, pipe alignment, sealant selection, and tightening procedure all influence how the joint performs. For this reason, strong connections begin with correct component selection and continue through careful installation.

Bronze Fitting Geometry

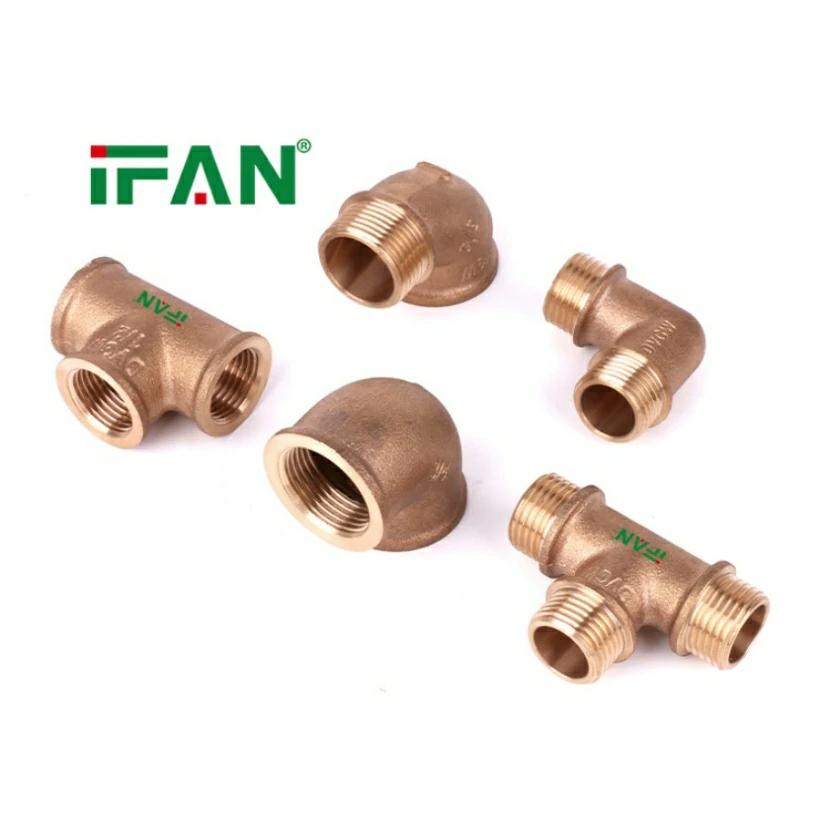

The shape and dimensions of the fitting body also contribute to the connection. Bronze threaded fittings are manufactured in different configurations, including elbows, tees, couplings, adapters, and other specialized forms.

Each configuration has a specific purpose within a piping network. The fitting body transfers forces between the connected components while maintaining the required flow path.

Wall thickness is another consideration. A fitting intended for a particular pressure class and pipe size should be selected according to the manufacturer's specifications. It is not appropriate to assume that two fittings with the same nominal thread size have identical pressure or mechanical ratings.

The geometry of the fitting must therefore correspond with the intended service conditions.

Alignment Supports Connection Strength

A strong threaded connection also depends on proper alignment. The pipe and fitting should meet along the intended axis before the threads are engaged.

If a fitting is started at an angle, cross-threading can occur. This may damage the thread profile and prevent the components from reaching their designed position.

Pipe alignment should therefore be checked before tightening. The installer should not use the threaded fitting to force a misaligned pipe into place. If the pipe route does not line up correctly, the layout should be corrected before the connection is finalized.

Good alignment allows the fitting to carry pressure and mechanical forces according to its intended geometry rather than adding unnecessary stress to the joint.

Connecting Different Components

Bronze threaded fittings are often used to connect different parts of a plumbing system. A fitting may join a pipe to a valve, connect two pipe sections, or provide a transition between different components.

When different materials are joined, the compatibility of the complete assembly needs to be considered. Thread specifications must match, and the fluid environment should be suitable for the materials involved.

The installer should also consider whether the connection requires an adapter or transition fitting rather than attempting to connect incompatible components directly. This creates a defined interface and helps maintain the intended mechanical relationship between the parts.

Pressure and External Forces

A threaded fitting may experience forces from internal water pressure as well as external loads from the surrounding pipework. Pressure creates forces within the fitting body and at the threaded connection, while pipe movement can place additional loads on the joint.

The system should therefore be designed so that the fitting is not used to compensate for poor pipe alignment or inadequate support. Pipe supports should be positioned according to the applicable installation requirements.

For systems where pressure fluctuates, the fitting should be selected according to the expected operating and transient conditions. Temperature should also be considered because heated fluids can alter pressure conditions and cause thermal movement in connected piping.
