UPVC Pipe Fitting Dimensional Tolerances: A Comparison of International Standards
Apr 25, 2025

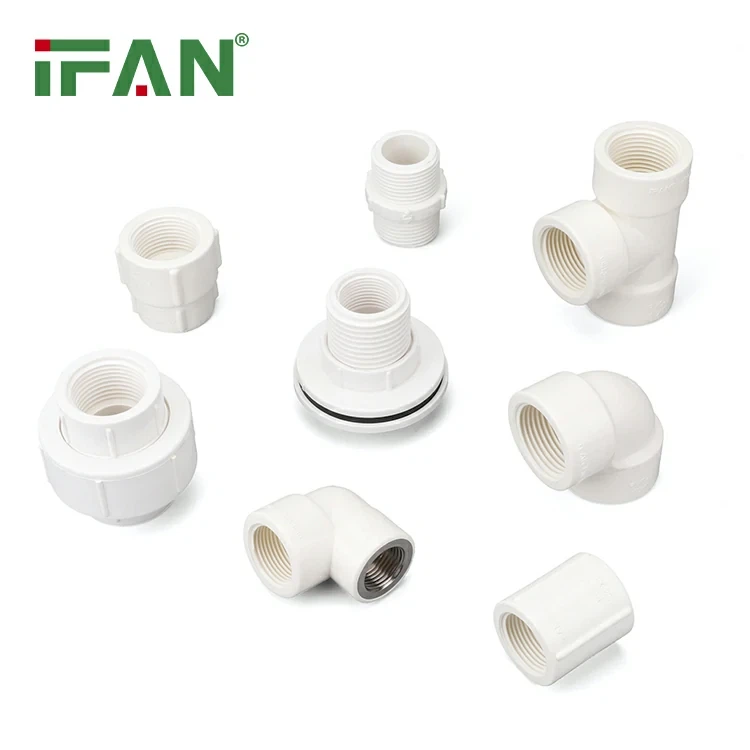

Introduction to UPVC Pipe Fitting Tolerances
UPVC (Unplasticized Polyvinyl Chloride) pipe fittings are widely used in plumbing, industrial, and chemical applications due to their durability, chemical resistance, and cost-effectiveness. However, dimensional tolerances-the permissible variations in size and shape-are critical to ensuring proper fit, leak-proof connections, and system reliability. Different countries and regions follow distinct standards, including ISO (International Organization for Standardization), ASTM (American Society for Testing and Materials), DIN (Deutsches Institut für Normung), and BS (British Standards). Understanding these variations is essential for manufacturers, engineers, and installers working in global markets.
ISO Standards for UPVC Pipe Fitting Tolerances
The ISO 161-1 and ISO 1452 series provide comprehensive guidelines for UPVC pipe fittings, covering:
Outer Diameter (OD) Tolerance: Typically ±0.2 mm for small diameters (up to 50 mm) and ±0.5 mm for larger pipes (above 200 mm).
Wall Thickness Tolerance: Generally ±10% of the nominal thickness.
Length Tolerance: ±5 mm for straight pipes and ±1 mm for socket depths.
Roundness and Straightness: Maximum deviation of 1% of the nominal diameter.
ISO standards are widely adopted in Europe, Asia, and parts of Africa, ensuring compatibility in international trade.
ASTM Standards for UPVC Pipe Fitting Tolerances
The ASTM D2466 and ASTM D1785 standards govern UPVC pipe fittings in North America, with key tolerances including:
Outer Diameter (OD) Tolerance: ±0.3 mm for pipes under 50 mm and ±1% of OD for larger sizes.
Wall Thickness Tolerance: +12% / -0% (no negative tolerance allowed).
Socket Depth Tolerance: ±0.8 mm for solvent-welded fittings.
Concentricity (Wall Thickness Uniformity): Must not exceed 5% variation.
ASTM standards are stricter on wall thickness uniformity to prevent weak spots, making them ideal for high-pressure applications.
DIN and BS Standards for UPVC Pipe Fitting Tolerances
DIN 8061 (Germany) & BS 3505 (UK)
These European standards specify:
Outer Diameter Tolerance: ±0.3 mm (DIN) and ±0.5 mm (BS) for pipes up to 110 mm.
Wall Thickness Tolerance: ±10% (DIN) and +12%/-0% (BS).
Socket and Spigot Fit: Must ensure a snug fit with ±0.2 mm clearance for solvent welding.
Straightness Requirement: Maximum deviation of 0.5% of pipe length.
DIN standards are known for precision, while BS standards align closely with ISO but with stricter pressure ratings.
Key Differences and Implications for Global Manufacturing
Comparison of Major Standards
| Parameter | ISO | ASTM | DIN | BS |
|---|---|---|---|---|
| OD Tolerance | ±0.2-0.5 mm | ±0.3-1% | ±0.3 mm | ±0.5 mm |
| Wall Thickness | ±10% | +12%/-0% | ±10% | +12%/-0% |
| Socket Fit | ±1 mm | ±0.8 mm | ±0.2 mm | ±0.5 mm |
| Roundness | 1% of OD | 5% max | 0.5% of OD | 1% of OD |
Implications for Industry
Interchangeability: ISO and DIN fittings are often compatible, while ASTM may require adapters.
Quality Control: Manufacturers must adjust production based on regional standards.
Regulatory Compliance: Exporters must ensure fittings meet destination market requirements.
Future Trends
Harmonization efforts (e.g., ISO and ASTM collaboration) aim to reduce discrepancies, but regional variations persist due to differing industrial needs.
Conclusion
Understanding UPVC pipe fitting dimensional tolerances across ISO, ASTM, DIN, and BS standards is crucial for ensuring system integrity, leak-proof performance, and global market compliance. While ISO provides a broad international framework, ASTM, DIN, and BS impose stricter requirements in specific areas. Manufacturers and engineers must carefully select fittings based on application requirements and regional regulations. As globalization increases, alignment between these standards may improve, but for now, awareness of key differences remains essential for seamless installations in diverse markets.
